Manufacturing process of solid surface material circular column cladding

Manufacturing process of solid surface material circular column cladding
Manufacturing process of solid surface material circular column cladding

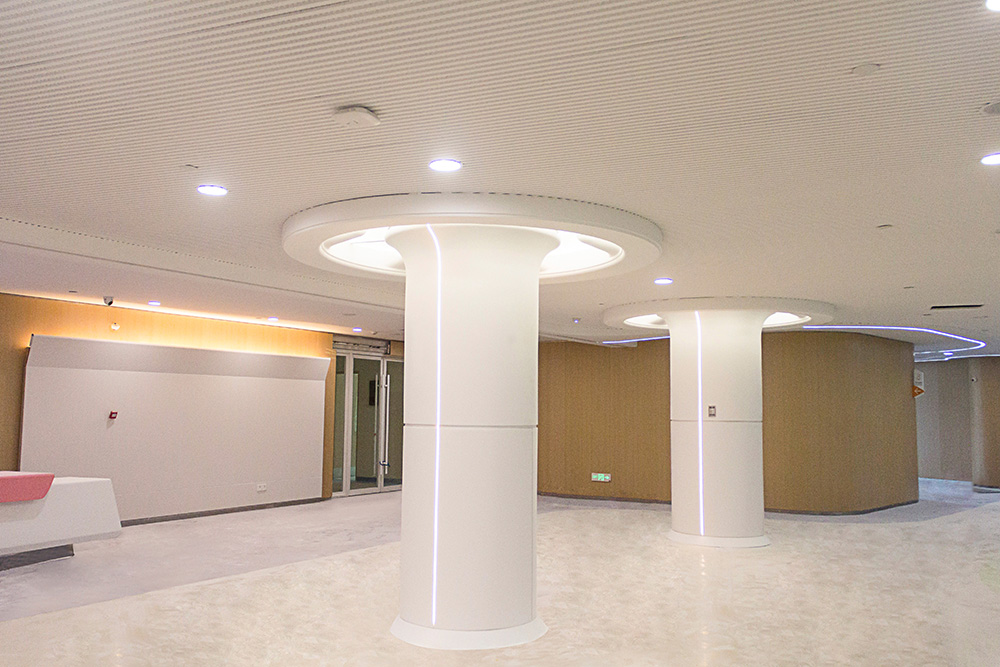

The application of solid surface in hospital spaces includes various areas such as:Countertops and Workstations,Wall Cladding,Sink and Vanity Units,Operating Rooms and Sterile Environments,Furniture and Fixtures,etc.


This vedio just show Gelandy solid surface circular column cladding used in hospital.


The solid surface column undergoes several intricate processes before it is ultimately completed. Large curved shapes are particularly complex and challenging. Strict requirements are applied throughout the design, fabrication, and installation processes.

Below are the steps involved in the manufacturing process of solid surface circular column cladding.




manufacturing process of solid surface circular column cladding

The solid surface column undergoes several intricate processes before it is ultimately completed. Large curved shapes are particularly complex and challenging. Strict requirements are applied throughout the design, fabrication, and installation processes.

Below are the steps involved in the manufacturing process of solid surface circular column cladding.



→3D Mold Design
Firstly, there is the 3D mold design. Specifications, design drawings, and requirements provided by the customer are transformed into technical drawings.Simultaneously, the shape is broken down into components that are easier to produce, transport, and install.Professional engineering design software is used for mold design.

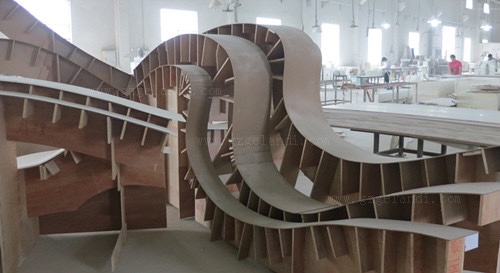

→Mold Fabrication
The second step is mold fabrication. Various mold components are produced based on the mold breakdown diagram, followed by assembly.

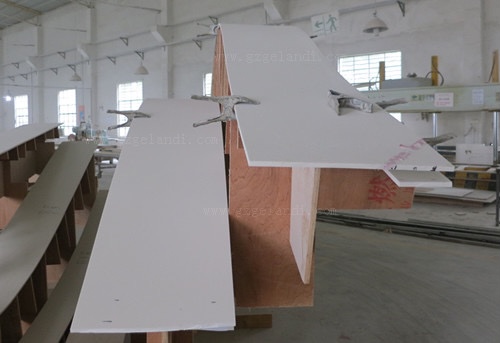

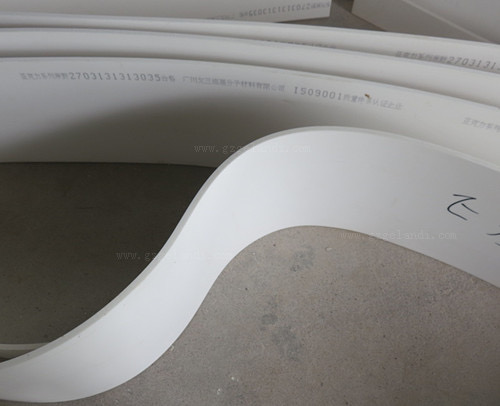

→Bending Of Solid Surface
The third step is the production of artificial stone products. Acrylic-based solid surface is cut according to the product dimensions, then placed in an oven for softening. The softened acrylic-based artificial stone is then bent on the mold.

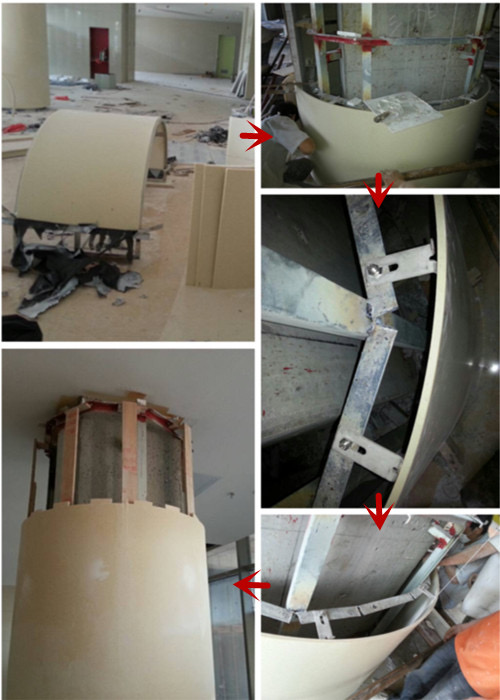

→ Installation And Polishing
The fourth step is on-site installation and polishing. First, the structural components such as layers, ribs, and square ducts are installed. Then, the solid surface material is installed according to the pre-assigned block numbers. Finally, the seams of the solid surface material are polished and the surface is treated.



Gelandy Solid Surface's bending diameter can reach 10cm.The color and texture of solid surface countertops are also customizable.The tea table can be customized as you want.
